MRT35 - Chipping Sodbury - Rotary Racer team

Discharge at approx 16.75 Amps down to 10.9 Volts.
Current measurement may be 4% high.

Date	Battery	Temperature	Amp/Hour	Data	Notes
2010-11-29	RR1	22	17.75	rr1-2010-11-29_20-32-42.csv
2010-11-30	RR1	22	19.65	rr1-2010-11-30_18-35-57.csv
2010-12-02	RR1	23	20.75	rr1-2010-12-02_19-25-24.csv
2010-11-30	RR2	22	17.97	rr2-2010-11-30_17-15-49.csv
2010-12-02	RR2	23	20.56	rr2-2010-12-02_15-45-38.csv
2010-12-06	RR2	32	23.41	rr2-2010-12-06_18-29-33.csv
2010-12-13	RR2	36	23.00	rr2-2010-12-13_18-43-56.csv
2010-12-21	RR2	48	23.49	rr2-2010-12-21_17-00-53.csv
2010-12-29	RR2	34	23.54	rr2-2010-12-29_12-41-08.csv	Slow charge

Graph data columns:

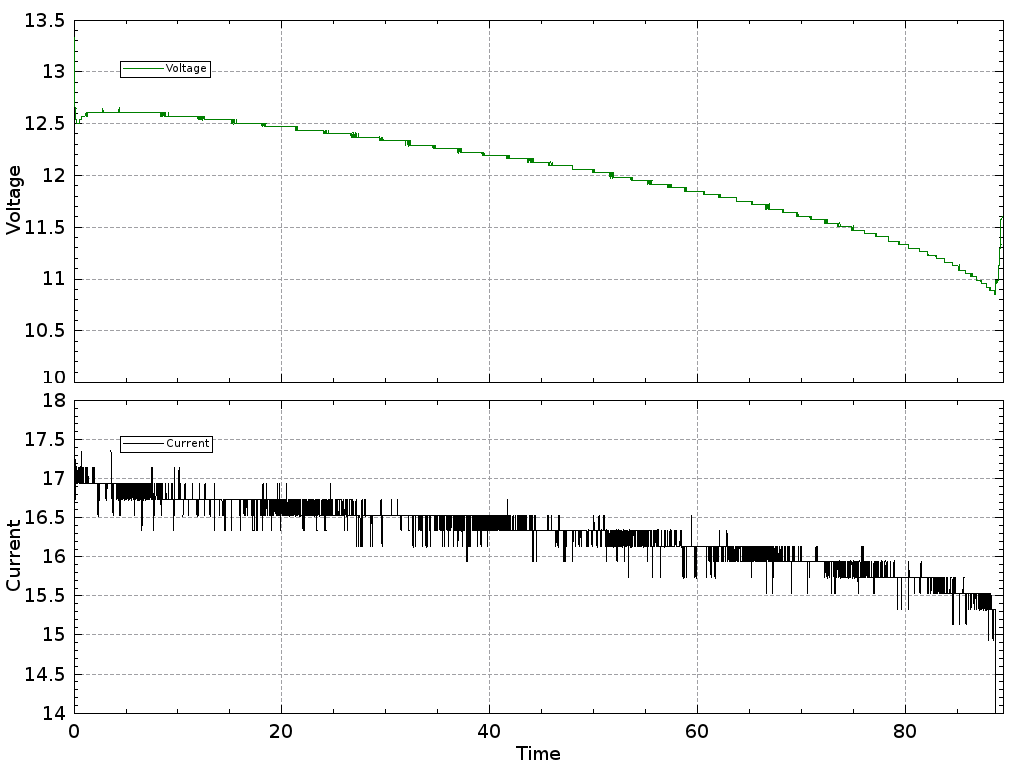

Battery discharge graph for rr2-2010-12-29_12-41-08.csv

Average Current use over race

Amp/Hour	Amps for 80 minutes
21	15.75
22	16.5
23	17.25
23.5	17.6
