Motor Testing - 2009-08-11
Test Rig
Warning: Make sure you use a chain guard with chain connected motors !

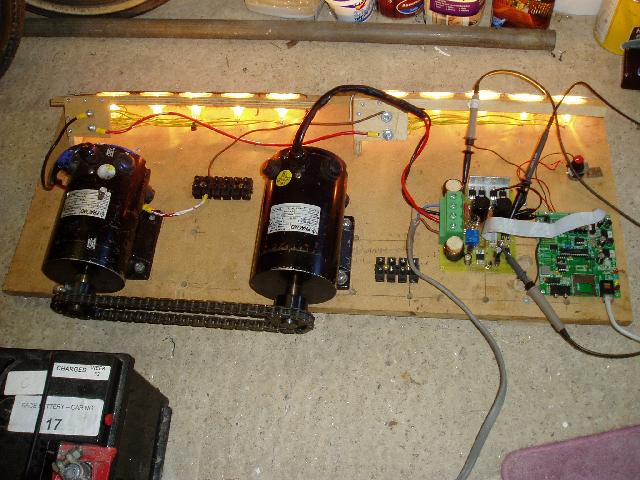

The test rig consists of TPM/Rotary Racers battery/motor test board. This is a board that allows two motors to be connected with a chain. The second motor is used as a generator driving two sets of 5 x 12V 50W halogen lamps. The first motor is the motor under test. This was driven using the CarComputer and Motor speed controller so that the voltage and current used can be displayed. We measure the test motors RPM and current (RPM measurement not shown in the above picture).
We then compare the RPM and Current figures with respect to a know good motor and to the Framco motor performace graphs to see how well they matched.
Motor Renishaw M2
This is an old motor as used by Renishaw. We think it is faulty and the results shows this.
Free running: RPM: 2420 @ 2.7A
Voltage | RPM | Voltage | Current | Power |
---|---|---|---|---|
12 | 860 | 11.29 | 13.5 | 152 |
24 | 1860 | 22.62 | 19.75 | 446 |
Motor RR1
This is an old motor as used by Rotary Racer in the past (RR5,RR6). We think it is faulty, having a shorted winding and the results shows this.
Free running: RPM: 2380 @ 2.18A
Voltage | RPM | Voltage | Current | Power |
---|---|---|---|---|
12 | 870 | 12.02 | 12.49 | 150 |
24 | 1870 | 23.94 | 18.14 | 434 |
Motor RR2
This is the current motor as used by Rotary Racer (RR7 and RR8). We think it is fine.
Free running: RPM: 2180 @ 2.0A
Voltage | RPM | Voltage | Current | Power |
---|---|---|---|---|
12 | 840 | 12.05 | 11.48 | 138 |
24 | 1800 | 24.02 | 16.12 | 387 |
